Pallet rack uprights are the vertical steel frames at each end of a rack bay. Each frame has two posts joined by horizontal and diagonal bracing. Beams lock into the posts and carry the pallets. Most frames use depths of 36, 42, or 48 inches. Heights often run from 8 to 24 feet. Choose depth from pallet size, and height from ceiling and reach.
What are pallet rack uprights?
Pallet rack uprights, also called upright frames, are the vertical ends of a selective rack. Each frame pairs two steel posts with bracing between them. The posts carry the load down to the floor. The bracing keeps the frame stiff and square. Beams clip or bolt into the post holes. Together, they form one bay.
Think of the upright frame as the skeleton of the rack. The front post faces the aisle. The rear post stands at the back of the bay. Also, horizontal struts and diagonal struts tie the two posts together. This bracing pattern stops sway and keeps loads steady. Finally, a footplate at each post spreads weight and takes anchor bolts.
Most posts show a row of holes or slots down the face. These holes set the beam height, often in steps of about 2 inches. So crews can level beams for mixed pallet heights. In addition, makers build two frame styles. Roll-formed frames use folded sheet steel and suit most warehouses. Structural frames use hot-rolled channel steel and suit heavy or cold-store work.
Pallet rack uprights also set the rack layout. Frame depth sets bay depth. Frame height sets the number of beam levels. And the post profile sets the frame rating. So the upright choice shapes cost, safety, and storage density at once.
What are the standard upright sizes?
Standard pallet rack uprights come in depths of 36, 42, and 48 inches. Heights most often run from 8 to 24 feet, in 2-foot steps. Post faces are usually about 3 inches wide. Depth is the key choice. It must match your pallet depth, with a small overhang front and back.
Manufacturers list frame sizes by depth first, then by height. Depth runs front to back. Height runs floor to top. For example, a team may order a 42-inch-deep, 16-foot-tall frame. That frame then pairs with beams of the right length. Post size also matters. A wider post face usually means stronger pallet rack uprights.
Pallet rack uprights: standard depths, heights, and pallet fit
| Upright depth | Typical heights | Best fit |
|---|---|---|
| 36 inches | 8 to 24 feet | Pallets about 42 inches deep |
| 42 inches | 8 to 24 feet | Standard 48 x 40 inch pallets |
| 48 inches | 8 to 24 feet | Deep pallets, 50 to 56 inches |
Heights follow the building, not the pallet. Low warehouses often use 8, 10, or 12 foot frames. Tall sites use 16, 20, or 24 foot frames instead. Still, forklift reach and sprinkler clearance cap the top level. So planners measure clear ceiling height before they order tall frames. They also leave room for the load and the lift-off space.
Depth choices stay simpler. Most brands stock 36, 42, and 48 inch frames as standard. Some lines also offer 24, 30, 44, or even 72 inch depths. However, odd depths can cost more and ship slower. In most cases, buyers pick the nearest standard depth for their pallet rack uprights.
How do uprights and beams work together?
Uprights and beams share the load in different ways. Beams run across the bay and hold the pallet directly. Then beams pass that weight into the upright posts at each end. Next, the posts carry the total load to the floor. So the beam rating and the frame rating must both fit the load on your pallet rack uprights.
Each beam locks into both posts with end connectors. Hooks or studs drop into the post holes. Then a safety clip or pin locks each connector in place. Never skip these clips. A forklift bump can lift an unclipped beam out of its slot. As a result, one loose beam can drop a full pallet load.
Beam length sets bay width. A common 96-inch beam holds two standard pallets side by side. Longer beams hold three. But longer beams bend more under load, so makers rate them lower. Meanwhile, wire decks rest on the beams and spread small loads. Decks add support, yet the beams still carry the pallet weight.
Teams also tune the pair by moving beam levels. Lower levels suit heavy pallets. Upper levels suit lighter cartons. And each beam change alters the frame load path. So planners treat pallet rack uprights and beams as one system, not two parts. That habit keeps ratings honest and racks stable.
How do you match upright depth to pallet size?
Match upright depth to pallet depth by using a simple rule. Choose a frame about 6 inches shallower than the pallet. For example, a 48-inch-deep pallet pairs with a 42-inch upright. That setup leaves 3 inches of overhang at the front and the back. As a result, both beams support the pallet fully.

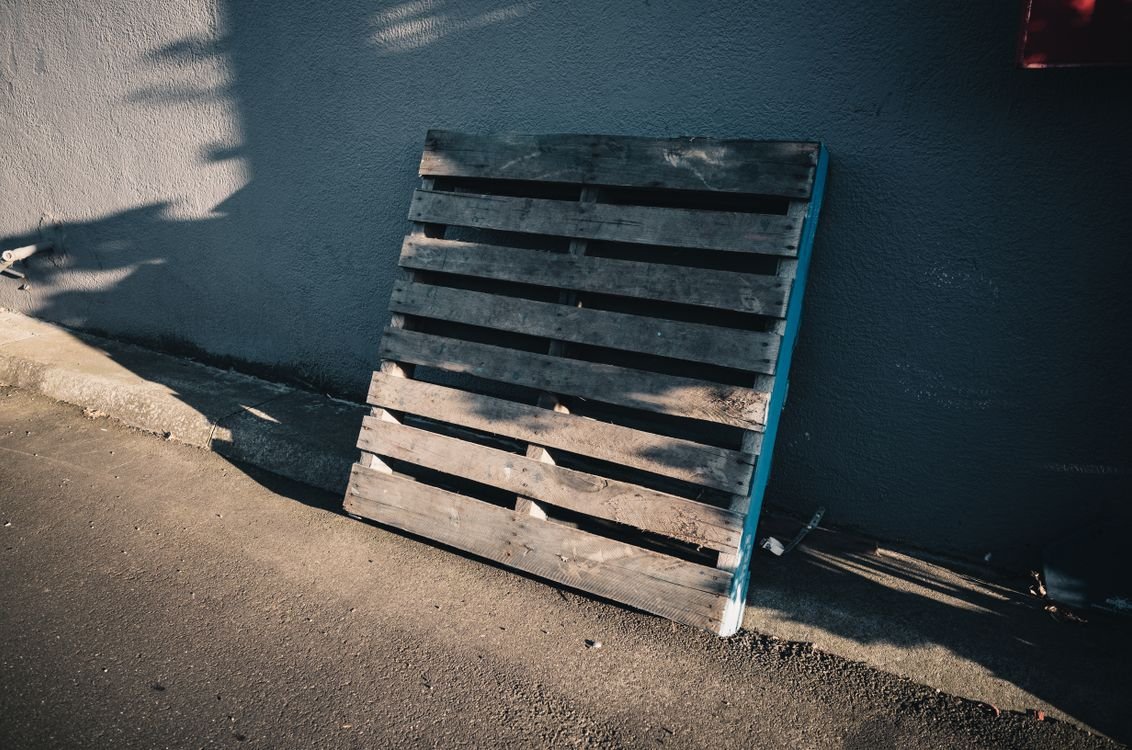

Start with the pallet footprint itself. Our guide to standard pallet dimensions lists the common footprints, from the 48 x 40 inch GMA pallet to Euro and half pallets. First, measure your own pallets, not the load. Loads can overhang the deck. Then apply the 6-inch rule to the deck depth. The result gives your frame depth.
Common pairings for pallet rack uprights
- 42-inch-deep pallet: choose a 36-inch upright.
- 48-inch-deep pallet: choose a 42-inch upright.
- 50 to 56-inch-deep pallet: choose a 48-inch upright.
A flush fit often causes trouble. The pallet ends sit flush with the posts. Then forks can strike the rear post on entry. Also, loads gain no spare room at the back. By contrast, a small overhang centers the deck on both beams. It also keeps fork entry clean and fast.
Finally, check the gaps around the load. Leave space between the pallet and each post. Back-to-back rows also need a flue gap for sprinklers and fire flow. Row spacers hold that gap even. So depth choice links pallet size, beam support, and fire safety in one step.
How much weight can pallet rack uprights hold?
Pallet rack uprights do not have one fixed weight limit. Manufacturer specs list frame capacity as a range, and it changes with beam spacing. Wider spacing lowers the rating. Heavier posts and thicker steel raise it. So always read the load plaque and the maker’s chart for your exact pallet rack uprights before you load it.
Three factors drive the frame rating. First, the post profile and steel thickness set the base strength. Next, vertical beam spacing changes the rating a lot. Wide gaps between levels let posts buckle sooner. Finally, frame depth and bracing add stiffness. Makers test these factors and publish a capacity chart for each frame.
Manufacturer charts show wide ranges, not one number. Light frames at wide beam spacing may rate in the low thousands of pounds per bay. Heavy structural frames at tight spacing can reach tens of thousands of pounds. Beams carry their own ratings too. Per the QMH guide to warehouse racking sizes, an 8-foot beam often holds more than 5,000 pounds per pair.
The load plaque on the rack states the true limit. ANSI MH16.1, the rack safety standard, guides these ratings. Never load past the plaque value. Also, damage cuts capacity at once. A bent post, a torn hole, or a cracked weld weakens the whole frame. So crews should unload that bay and call a rack inspector.
In short, treat capacity as a matched set. The frame rating, the beam rating, and the plaque must all agree. When they conflict, the lowest value wins. That rule keeps pallet rack uprights safe under real loads. It also protects stock, trucks, and the people in the aisle.
Frequently Asked Questions
These are the questions we hear most about pallet rack uprights.
What is the difference between an upright and an upright frame?
People use the terms loosely, but they differ. One upright post is a single vertical column. An upright frame joins two posts with bracing. Suppliers sell frames as one welded or bolted unit. So orders list frames, not single posts, in most cases.
Can you mix uprights from different brands?
Mixing brands is risky and often unsafe. Post shapes, hole patterns, and steel grades vary by brand. A beam from one line may not lock well in another line. Also, mixed parts can void the rack rating. So keep pallet rack uprights in each bay in one brand and one system.
How deep should a rack be for a 48 x 40 pallet?
Use a 42-inch upright for this common pallet. The pallet is 48 inches deep in rack terms. So the 6-inch rule gives 42 inches of frame depth. That leaves 3 inches of overhang at the front and the back. Both beams then support the pallet fully.
Do taller uprights hold less weight?
Height alone does not set the rating. Beam spacing matters more than total height. A tall frame with tight levels can outrate a short frame with wide levels. Still, tall frames face more sway and impact risk. So anchors, bracing, and seismic checks matter more for tall pallet rack uprights.
When should you replace a damaged upright?
Replace a frame when damage cuts its strength. Deep dents, bends, and torn holes all count. Also replace frames with cracked welds or heavy rust. Do not try to bend a post back into shape. Instead, unload the bay, guard the area, and fit a new frame.
